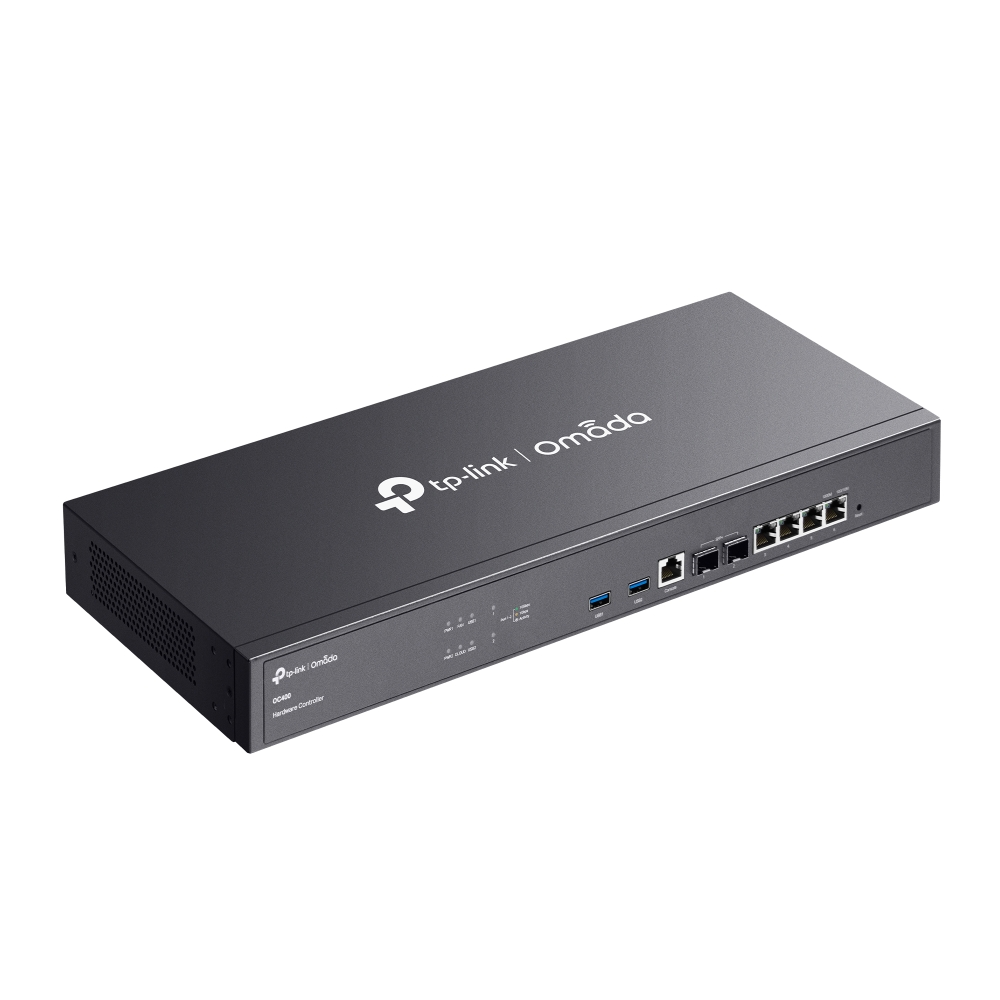

TP-LINK 4port 2-SFP+ 10GbE Donanım Denetleyicisi OMADA OC400

DONANIM ÖZELLİKLERİ

İşlemci Quad-Core CPU
Bellek 4 MB Nor Flash; 32 GB eMMC; 8 GB DDR4
Arabirim • 2× 10G SFP+ Ports
• 4× GE RJ45 Ports
• 2× USB 3.0 Ports
• 1× GE Console Port
Fan Sayısı 1
Buton • 1× Reset
Güç Kaynağı 100-240 V ~ 50/60 Hz AC
Boyutlar ( W X D X H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

YÖNETİM

Omada App Yes
Centralized Management • Up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers

*Refer to www.tp-link.com/en/business-networking/all-omada/ to find all the models supported by OC400
Cloud Access Yes
Multi-site Yönetim Yes
Management Features • Multi-tenant Management (Role/Site/Device Privileges)
• Migration (Site Migration/Controller Migration)
• Account Management
• Backup & Restore
• Auto Backup
• Customized UI Interface
• Automatic Device Discovery
• Batch Configuration
• Online upgrade
• Reboot Schedule
• PoE Schedule
• WLAN Schedule
• Batch Firmware Upgrading
• DDNS
• SNMP
• SSH

Yedek Güç Kaynağı

Redundant Power Supply 2× Internal Fixed Power Supplies

İZLEME

Monitoring • Custom Dashboard
• Statistics (Performance/Switch Stats)
• Network topology
• Network Map
• Devices List
• Clients List
• Insights
• Logs

DİĞERLERİ

Sertifika CE, FCC, RoHS
Paket İçeriği • Omada Hardware Controller OC400
• Quick Installation Guide
• Ethernet Cable
• Power Cord
• Rackmount Kit
Sistem Gereksinimleri Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Ortam • Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
