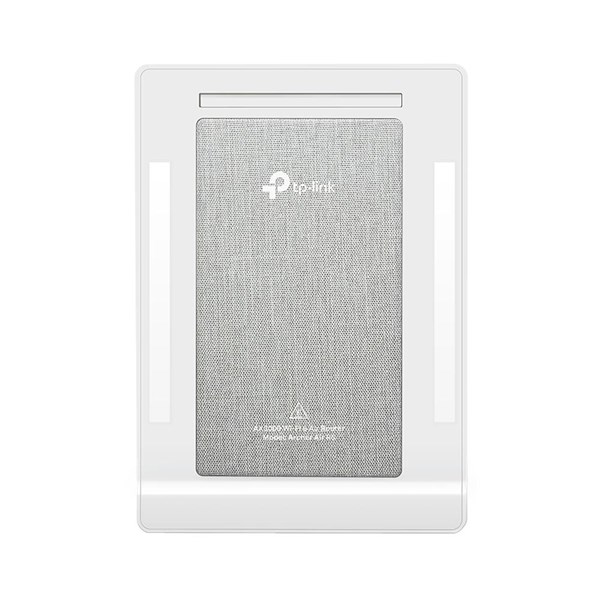

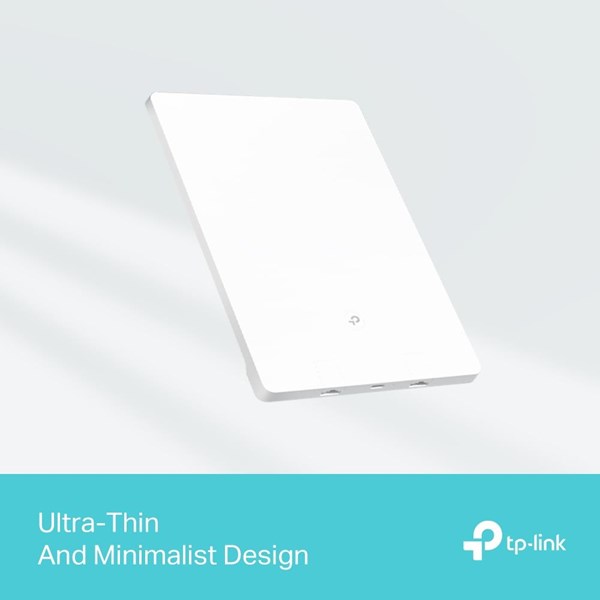

TP-LINK ARCHER AIR R5 X95 AX3000 Duvar Tipi Access Point

Archer Air R5
AX3000 Çift Bantlı Wi-Fi 6 Air Router

• Gelecek Nesil Gigabit Wi-Fi 6 Hızı— 5 GHz bandında 2402 Mbps ve 2.4 GHz bandında 574 Mbps, daha akıcı yayınlar ve daha hızlı indirmeler sağlar. Bu, yüksek bant genişliği gerektiren uygulamalar için idealdir.

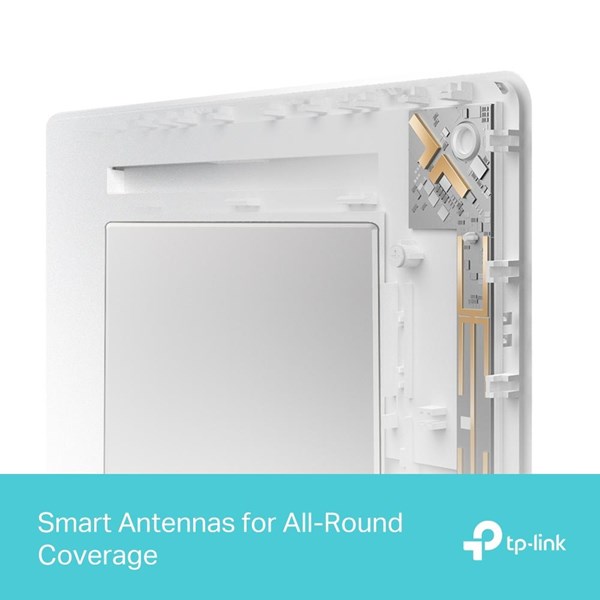

• Akıllı Antenler – Cihazların konumlarını otomatik olarak algılayarak anten yönlendirmesini ayarlayan akıllı algoritmalar kullanır. Bu sayede, her zaman stabil ve güçlü bir sinyal alırsınız.
• Son Derece Düşük Gecikme— Daha hızlı tepki süreleri sayesinde oyun oynamak ve video görüşmeleri yapmak daha keyifli hale gelir.
• TP-Link HomeShield - En son siber tehditlere karşı gelişmiş güvenlik sağlar. Bu, ev ağınızı korumak için ek bir katman sunar.
• EasyMesh Uyumlu - EasyMesh uyumlu yönlendiricilerle birlikte çalışarak evinizde kapsamlı bir mesh ağı oluşturmanızı sağlar. Bu, sinyal gücünü artırır ve kapsama alanını genişletir.

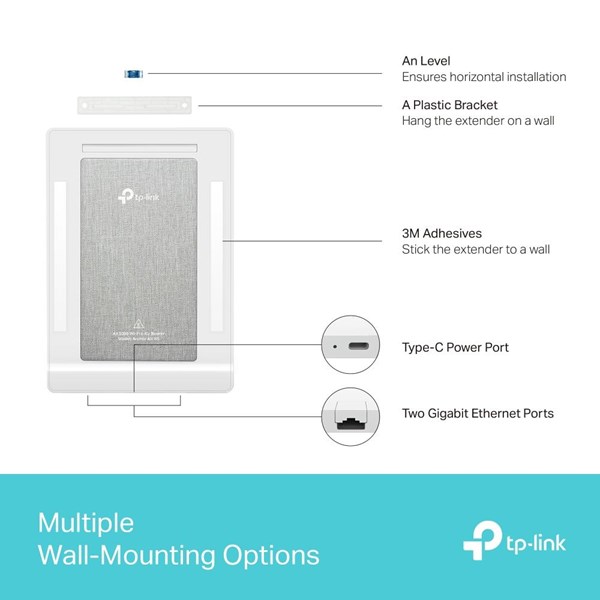

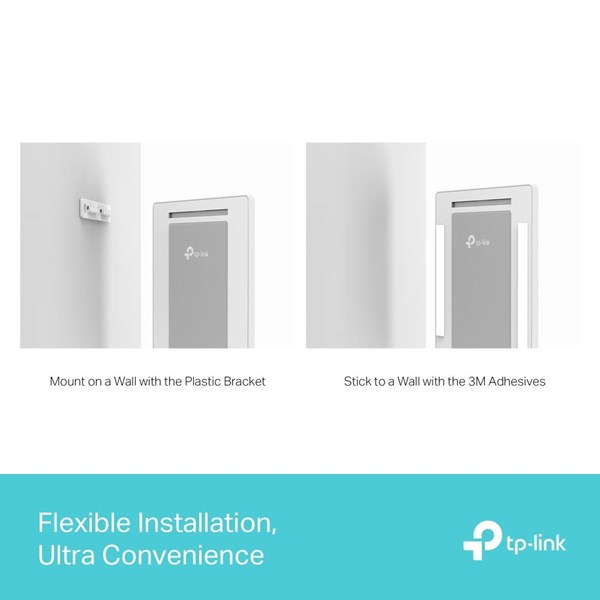

• Esnek Kurulum – 3M yapıştırıcılar ve ekli plastik braket ile duvara yapıştırmak veya monte etmek kolaydır. Bu, cihazı istediğiniz yere kolayca yerleştirmenize olanak tanır.

KABLOSUZ

Standards and Protocols Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX3000
5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 3 Bedroom HousesMultiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Kapasitesi HighDual-Band
Allocate devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

4 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
AP Mode


GÜVENLİK

Network Security HomeShield SecurityReal-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server PPTP ServerN
OpenVPN ServerN

WiFi Encryption WPA/WPA2
WPA3
WPA/WPA2-PSK

DONANIM ÖZELLİKLERİ

Input Power 12V/2A

HARDWARE

Ethernet Ports 1× Gigabit WAN Port
1× Gigabit LAN Port
Butonlar WPS Button
Reset Button

SOFTWARE

Protocols IPv4
IPv6
Service Kits HomeShield
Learn More>
EasyMesh Mesh networking creates smooth, fast, stable roaming. Archer Air R5 can build an EasyMesh network with devices that use EasyMesh technology. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.
Learn More about EasyMesh>
Parental Controls HomeShield Parental ControlsCustom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types Dynamic IP
Static IP
PPPoE
PPPoE + Dynamic IP
PPPoE + Static IP
L2TP + Dynamic IP
L2TP + Static IP
PPTP + Dynamic IP
PPTP + Static IP

Quality of Service QoS by Device
Cloud Service FOTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Fowarding
Port Triggering
DMZ
UPnP
IPTV Profile
Bridge
Custom
Allowed range of VLAN ID
DHCP DHCP Server
Address Reservation
DHCP Client List
DDNS TP-Link
NO-IP
DynDNS
Management Features Tether App
Webpage
Check Web Emulator>

OTHER

Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DNS
DNS
• Port: 53 Protocol: TCP & UDP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
App management
Manage and configure device through app
• Port: 20001 Protocol: TCP
• Port: 30001 Protocol: TCP
• Port: 20002 Protocol: UDP

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40~60?
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90%

TEST DATA

WiFi Transmission Power CE:
<20dBm(2.4GHz)
<23dBm(5.15GHz~5.35GHz)
<30dBm(5.47GHz~5.725GHz)
FCC:
<30dBm(2.4GHz & 5.15GHz~5.825GHz)
WiFi Reception Sensitivity 5GHz-band1:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ac HT20 MCS8:-74dBm
11ac HT40 MCS9:-69dBm
11ac HT80 MCS9:-65dBm
11ax HE20 MCS0: -97dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -94dBm
11ax HE40 MCS11: -63dBm
11ax HE80 MCS0: -91dBm
11ax HE80 MCS11: -60dBm
5GHz-band2:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ac HT20 MCS8:-74dBm
11ac HT40 MCS9:-69dBm
11ac HT80 MCS9:-65dBm
11ax HE20 MCS0: -97dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -94dBm
11ax HE40 MCS11: -63dBm
11ax HE80 MCS0: -91dBm
11ax HE80 MCS11: -60dBm
11ax HE160 MCS0: -88dBm
11ax HE160 MCS11: -58dBm
5GHz-band3:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ac HT20 MCS8:-74dBm
11ac HT40 MCS9:-69dBm
11ac HT80 MCS9:-65dBm
11ax HE20 MCS0: -97dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -94dBm
11ax HE40 MCS11: -63dBm
11ax HE80 MCS0: -91dBm
11ax HE80 MCS11: -60dBm
11ax HE160 MCS0: -88dBm
11ax HE160 MCS11: -58dBm
2.4GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11n HT20 MCS7:-76dBm
11n HT40 MCS7:-72dBm
11ax HE20 MCS0: -95dBm
11ax HE20 MCS11: -65dBm
11ax HE40 MCS0: -93dBm
11ax HE40 MCS11: -62dBm

PHYSICAL

Dimensions (W×D×H) 8.3 × 5.5 × 0.4 in
(210 × 140 × 10.8 mm)

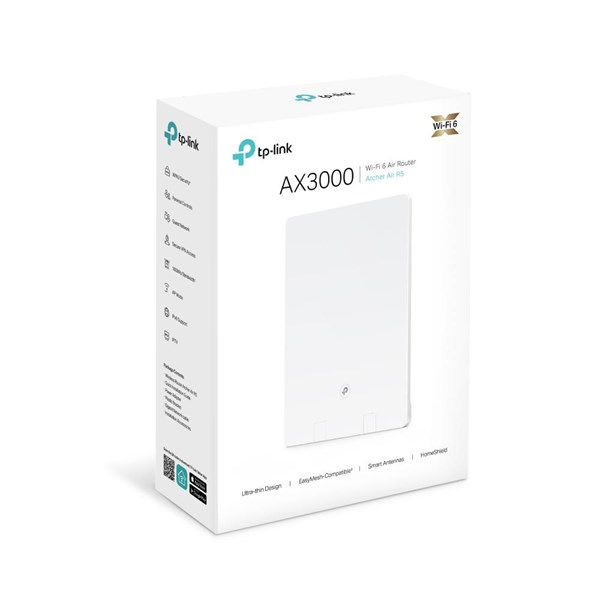

Package Content Wireless Router Archer Air R5
Quick Installation Guide
Power Adapter
Plastic Bracket
Gigabit Network Cable
Installation Accessories

Ek sürüm bilgisi için lütfen destek sayfasına gidin.
