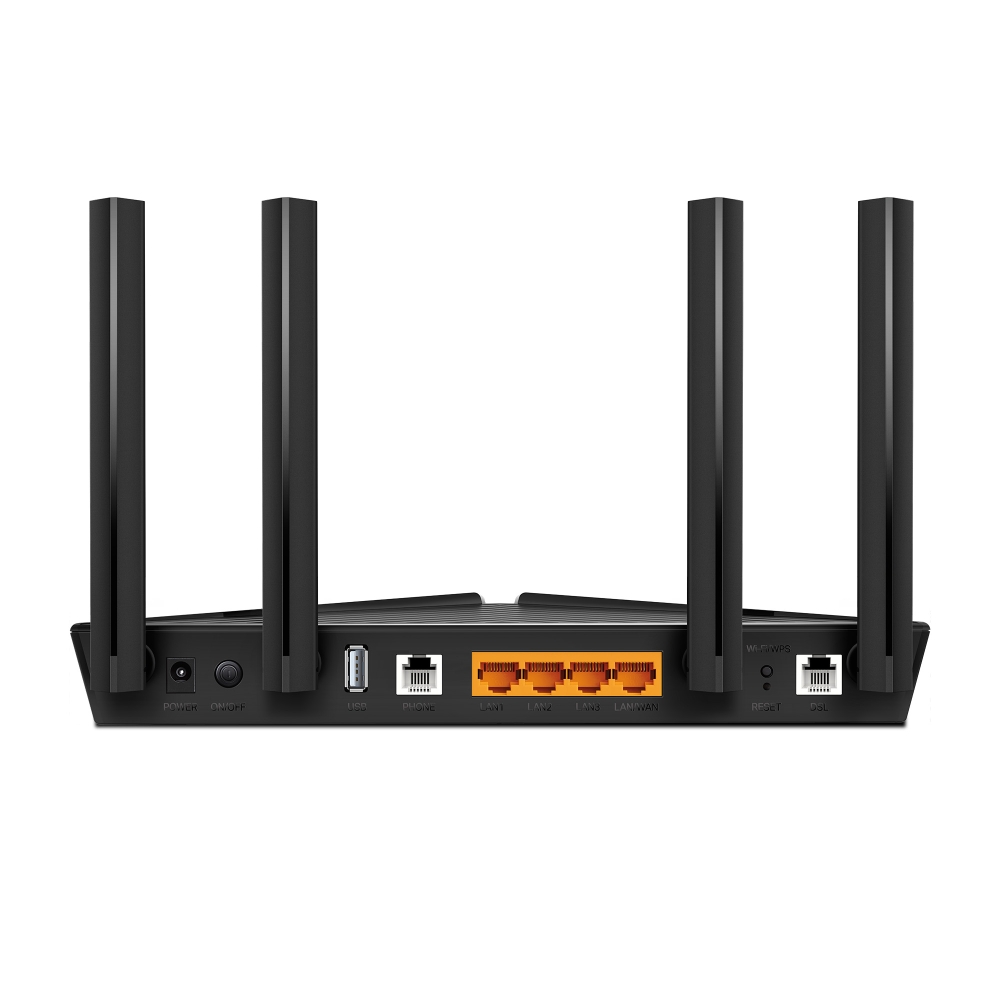

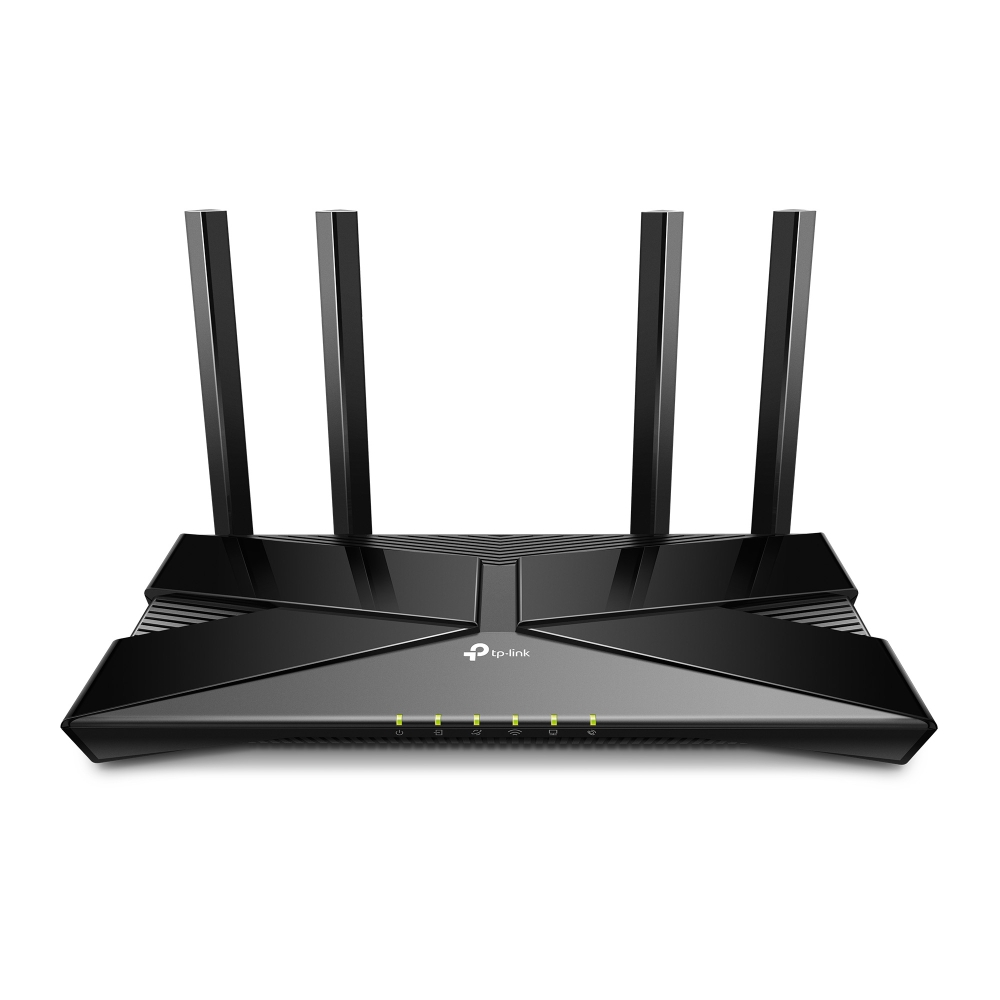

TP-LINK Archer VX1800v AX1800 Dual Band Modem Router

DONANIM ÖZELLİKLERİ

Arabirim 1× Gigabit WAN/LAN,
3× Gigabit LAN,
1× USB 2.0,
2× RJ11 (1× DSL + 1× FXS)
Harici Güç Kaynağı 12V / 1.5A
IEEE Standartları IEEE 802.3, IEEE 802.3u, 802.3ab
VDSL2 Standartları ITU-T G.993.2, ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP)
ADSL Standartları Full-rate-ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT), ITU-TG.992.2 (G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.11
ADSL2 Standartları ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standartları ITU-T G.992.5(Annex A/L/M)
Boyutlar ( W X D X H ) 260.2 × 135.0 × 41.6 mm
Anten 4× External Antennas

KABLOSUZ ÖZELLİKLERİ

Kablosuz Standartlar IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
Kablosuz Hızı 1201 Mbps at 5 GHz, 574 Mbps at 2.4 GHz
Frekans 2.4 GHz and 5 GHz
Kablosuz Fonksiyonlar Enable/Disable Wireless Radio, WMM
Kablosuz Güvenlik WPA2-PSK, WPA2-PSK/WPA-PSK, WPA3-Personal, WPA3-Personal/WPA2-PSK, WPA2-Enterprise, WPA/WPA2-Enterprise encryptions
İletim Gücü CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
Kablosuz Takvim Supports 2.4 GHz and 5 GHz Wireless Schedule

VoIP ÖZELLİKLERİ

VoIP Standartları SIP(RFC3261)/RTP(RFC1889/3550), G.711A/u, G.722, G.729AB, G.726
Integrated Answering Machine Stores long voice messages internally on the modem router or store voice messages externally on USB storage devices
Advanced Telephone Functions Call Forwarding, Call Transfer, Call Back on Busy, Call Blocking, Anonymous Call Blocks, Speed Dial, Emergency Number

YAZILIM ÖZELLİKLERİ

Gelişmiş Özellikler IPTV, Parental Controls, Network Address Translation (NAT), Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional), DNS Relay, DDNS, IGMP V1/V2/V3
Güvenlik NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
Çalışma Modları VDSL/ADSL Modem Router, 3/4G Router, Wireless Router
Yönetim Access Control, Local Management, Remote Management
DHCP Server, DHCP Client List, Address Reservation
Port Yönlendirme Port Forwarding, Port Triggering, UPnP, DMZ
Dinamik DNS DynDns, NO-IP, TP-Link
VPN OpenVPN, PPTP VPN, IPSec VPN
Protokoller Support IPv4 and IPv6
ATM/PPP Protokolleri ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
USB Paylaşım Support Samba (Storage) / FTP Server / Media Server / 3G/4G Modem / SFTP Server / Web Storage
Misafir Ağ 2.4 GHz guest network, 5 GHz guest network
IPSec VPN Support up to 10 IPSec VPN tunnels

OTHER

Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
DNS
• Port: 53 Protocol: TCP
App management
Manage and configure device through app
• Port: 22 Protocol: TCP
• Port: 20002 Protocol: TCP
CWMP
CPE WAN Management Protocol
• Port: 7553 Protocol: TCP

DİĞERLERİ

Sertifika CE, RoHS
Paket İçeriği Wi-Fi 6 VDSL/ADSL Modem Router Archer VX1800v
External Splitter
RJ11 DSL Cable
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
Sistem Gereksinimleri Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or
other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Ortam Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~60? (-40? ~140?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
