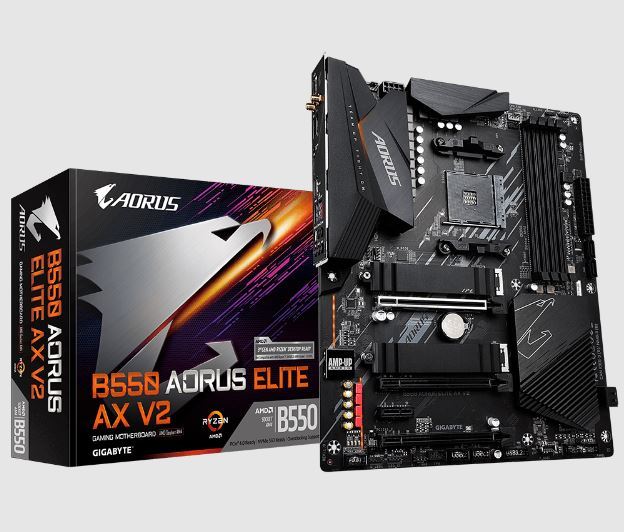

GIGABYTE B550 AORUS ELITE v2 DDR4 HDMI DP PCIe 16X v4.0 AM4 ATX

Teknik Bilgiler
İşlemci Soket Tipi AM4
Chip Set AMD B550
Ram Slot Sayısı 4 Adet
Max Ram Desteği 128GB
RAM Tipi DDR4
Ram Frekans Hızı 4000 MHz,4733 MHz,2400 MHz,2666 MHz,2933 MHz,3200 MHz,3466 MHz,3600 MHz,2133 MHz
İşlemci Desteği Ryzen 5,Ryzen 3,Ryzen 7,Ryzen 9 (Soket AM4)
Anakart Boyutu ATX
USB 3.2 8 Adet
USB 3.1 Yok
USB 3.0 4 Adet
USB 2.0 6 Adet
eSata Yok
Bluetooth Yok
PCI Express 4.0 x16 1 Adet
PCI Express 3.0 x16 2 Adet
PCI Express 2.0 x16 Yok
PCI Express x16 Yok
PCI Express x1 Yok
PCI Slot Yok
M.2 Slotu 1 Adet
DVI Yok
HDMI Var
DP (Display Port) Yok
Lan Hızı 10/100/1000Mbps
Lan Çıkış Sayısı 1 Adet
Satış Garanti Süresi (ay) 24
EAN 4719331809904

Detaylı Bilgiler
Kategori Özellik

CPU AMD Socket AM4, support for AMD Ryzen™ 5000 Series/5000 G-Series/4000 G-Series/3000 Series/3000 G-Series Processors
(Please refer "CPU Support List" for more information)
Chipset AMD B550
Memory 4 x DDR4 DIMM sockets, up to 128 GB (32 GB per DIMM)
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Dual channel memory architecture
ECC & non-ECC support
Extreme Memory Profile (XMP) support
Onboard Graphics 1 x DisplayPort, max resolution 5120x2880@60Hz (DP1.4, HDCP2.3, HDR)
1 x HDMI port, max resolution 4096x2160@60Hz (HDMI2.1, HDCP2.3, HDR)
Maximum shared memory: 16 GB
Audio Realtek® ALC1200 codec, High Definition Audio, 2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN Realtek® 2.5GbE LAN chip (2.5/1/0.1 Gbps)
Wireless Intel® Wi-Fi 6 AX200, Dual-Band 2.4/5GHz, BLUETOOTH 5, 11ax 160MHz, up to 2.4 Gbps
Expansion Slots 1 x PCIe x16 (CPU): AMD Ryzen™ 5000/3000 Series support PCIe4.0 x16, G-Series support PCIe3.0 x16
1 x PCIe x16 (Chipset, PCIEX2): PCIe3.0 x2
1 x PCIe x16 (Chipset, PCIEX1_2): PCIe3.0 x1
1 x PCIe x1 (Chipset, PCIEX1_1): PCIe3.0 x1
Storage Interface 1 x M.2 Socket 3 (CPU, 2242/2260/2280/22110, SATA & PCIe4.0 x4/x2, G/Series PCIe3.0 x4/x2)
1 x M.2 Socket 3 (Chipset, 2242/2260/2280/22110, SATA & PCIe3.0 x4/x2)
4 x SATA 6Gb/s connectors (RAID 0/1/10 supported)
USB CPU: 2 x USB 3.2 Gen2 Type-A (red), 2 x USB 3.2 Gen1, 1 x USB 2.0/1.1 (back panel)
Chipset: 1 x USB Type-C™ (internal), 1 x USB 3.2 Gen1 (back), 2 x USB 3.2 Gen1 (internal), 2 x USB 2.0/1.1 (back), 4 x USB 2.0/1.1 (internal hub)
Internal I/O Connectors 1 x 24-pin ATX main power
1 x 8-pin ATX 12V power
2 x M.2 Socket 3
4 x SATA 6Gb/s
1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers
1 x CPU cooler LED/RGB header
2 x Addressable LED headers, 2 x RGB LED headers
1 x Front panel header, 1 x front panel audio header
1 x USB Type-C™ header (USB 3.2 Gen1), 1 x USB 3.2 Gen1 header, 2 x USB 2.0/1.1 headers
1 x TPM header (2x6 pin), 1 x Clear CMOS jumper
Back Panel Connectors 1 x DisplayPort
1 x HDMI
2 x SMA antenna connectors (2T2R)
2 x USB 3.2 Gen2 Type-A / USB 3.2 Gen1 (red, CPU)
3 x USB 3.2 Gen1, 2 x USB 2.0/1.1
1 x Q-Flash Plus button
1 x RJ-45, 1 x optical S/PDIF Out
5 x Audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage, Temperature, Fan speed, Water cooling flow rate, Overheating warning, Fan fail warning, Fan speed control
*Fan speed control depends on installed fan
BIOS 1 x 256 Mbit flash, AMI UEFI BIOS
PnP1.0a, DMI2.7, WfM2.0, SMBIOS2.7, ACPI5.0
Unique Features APP Center*, @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer, Q-Flash, Q-Flash Plus
*Application support may vary by motherboard model
Bundled Software Norton® Internet Security (OEM), LAN bandwidth management software
Operating System Windows 11 64-bit, Windows 10 64-bit
Form Factor ATX; 30.5cm x 24.4cm
