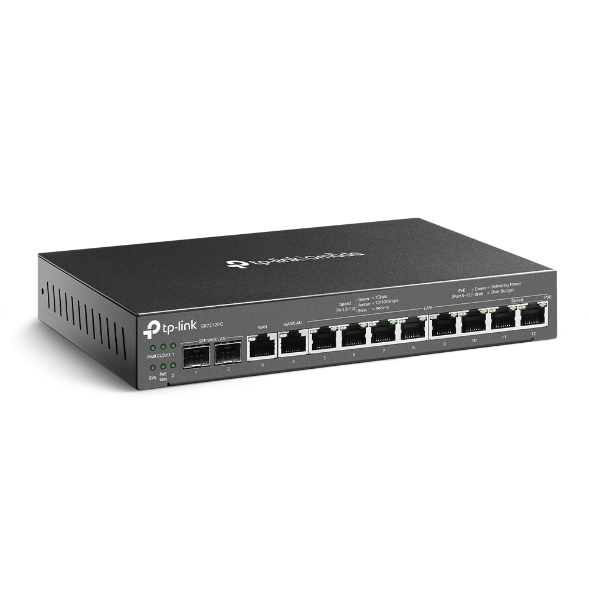

TP-LINK ER7212PC Gigabit Omada 3'ü 1 Arada VPN Yönlendirici (Router)

ER7212PC
Omada 3'ü 1 Arada Gigabit VPN Router

• 3'ü 1 Arada Router: Router, PoE+ çıkışı ve Omada merkezi yönetim özelliğini bir araya getirir. 10 adede kadar EAP merkezi olarak yönetilebilir.
• Profesyonel Donanım: 1GB DDR3 belleğe sahip Çift Çekirdekli CPU, 12× Gigabit bağlantı noktasına kadar mükemmel performans sağlar.
• 4×'e kadar WAN Ethernet Bağlantı Noktası: 2× Gigabit SFP WAN/LAN portu**, 1× Gigabit RJ45 WAN portu ve 1× Gigabit RJ45 WAN/LAN portu ile donatılmıştır.
• 110W PoE Bütçesi: 8 × 802.3at/af uyumlu PoE+ RJ45 LAN bağlantı noktaları toplam 110W* güç kaynağı sağlar.
• Merkezi Yönetim: Bulut erişimi ve Omada uygulaması, büyük bir konfor ve kolay yönetim sunar.
• Yüksek Güvenlikli VPN:  IPsec VPN, OpenVPN ve L2TP/PPTP VPN bağlantılarını destekler.
• Kolay Kurulum: Masaüstü ve duvar montajı için fansız ve kompakt tasarım.
Omada Cloud SDN hakkında daha fazla bilgi edinin>



GÜVENLİK

Access Control Source/Destination IP Based Access Control
Filtreleme URL Filtering
ARP Denetleme -
Saldırı Koruması • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

DONANIM ÖZELLİKLERİ

Standartlar ve Protokoller • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP

Arabirim • 2 Gigabit SFP WAN/LAN ports
• 1 Gigabit WAN port
• 1 Gigabit LAN/WAN port
• 8 Gigabit LAN ports
Ağ Medyası • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100? STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100? STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Sayısı Fanless
Buton Reset Button
Güç Kaynağı 53.5VDC/2.43A Adapter
PoE Budget 8 ports PoE+ output, 110 W PoE Budget
Flash 8Mb Nor + 4 GB EMMC
DRAM 1 GB DDR3
LED PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Boyutlar ( W X D X H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

Koruma 4 kV surge protection
Muhafaza Steel
Montaj Desktop/Wall-mount
Maks. Güç Tüketimi • 133.2W with PoE Max
• 13.88W without PoE


PERFORMANS

Eşzamanlı Oturum 24,980
New Sessions /Second 1,900
NAT (Static IP) 935.5 Mbps / 942.1 Mbps
NAT(DHCP) 940.2 Mbps / 941.7 Mbps
NAT(PPPoE) 913.1 Mbps / 935.2 Mbps
NAT (L2TP) 545.0 Mbps / 912.7 Mbps
NAT (PPTP) 523.0 Mbps / 912.8 Mbps
IPsec VPN Throughput AES256: 168.5 Mbps
OpenVPN 34 Mbps
L2TP VPN Throughput • Unencrypted: 845.3 Mbps
• Encrypted: 333.2 Mbps
PPTP VPN Throughput • Unencrypted: 1012.6 Mbps
• Encrypted: 401.4 Mbps
66 Byte Packet forwarding rate 154,069 pps / 156,977 pps
1,518 Byte Packet forwarding rate 81,193 pps / 81,193 pps

TEMEL FOKSİYONLAR

WAN Bağlantı Türü • Static IP
• Dynamic IP
• PPPoE
• PPTP
• L2TP
MAC Klon Modify WAN MAC Address
DHCP • DHCP Server
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
IPv6 support
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy

GELİŞMİŞ FONKSİYONLAR

ACL IP/Port/Protocol/Domain Name Filtering
Gelişmiş Yönlendirme • Static Routing
• Policy Routing
Bandwidth Kontrol IP/Port-based Bandwidth Control

Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup
• Online Detection
NAT • Multi-Net NAT
• Virtual Server
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

Session Limit IP-based Session Limit

VPN

SSL VPN -
IPsec VPN • 20 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• AES128, AES192, AES256 Encryption Algorithm
• IKE v1/v2
• SHA1, SHA2 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• PPTP VPN Client (10)§
• 16 Tunnels
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• L2TP VPN Client (10)§
• 16 Tunnels
• L2TP over IPSec
OpenVPN • OpenVPN Server
• OpenVPN Client (10)§
• 16 OpenVPN Tunnels

AUTHENTICATION

Web Authentication • No Authentication
• Simple Password
• Hotspot (Local User / Voucher / SMS / Radius)
• External Radius Sever
• External Portal Sever


YÖNETİM

Omada App Yes
Centralized Management Management of up to 2 Omada switches, and 10 Omada access points
Cloud Access Yes
Servis Dynamic DNS (Dyndns, No-IP)
Bakım • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Syslog Support
Zero-Touch Provisioning -
Management Features • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• Management of up to 2 Omada switches and 10 Omada access points

DİĞERLERİ

Sertifika CE, FCC, RoHS
Paket İçeriği • ER7212PC
• Power Adapter
• Power Cord
• Quick Installation Guide
Sistem Gereksinimleri • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
• MAC OS, NetWare, UNIX or Linux
Ortam • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing

Ek sürüm bilgisi için lütfen destek sayfasına gidin.
