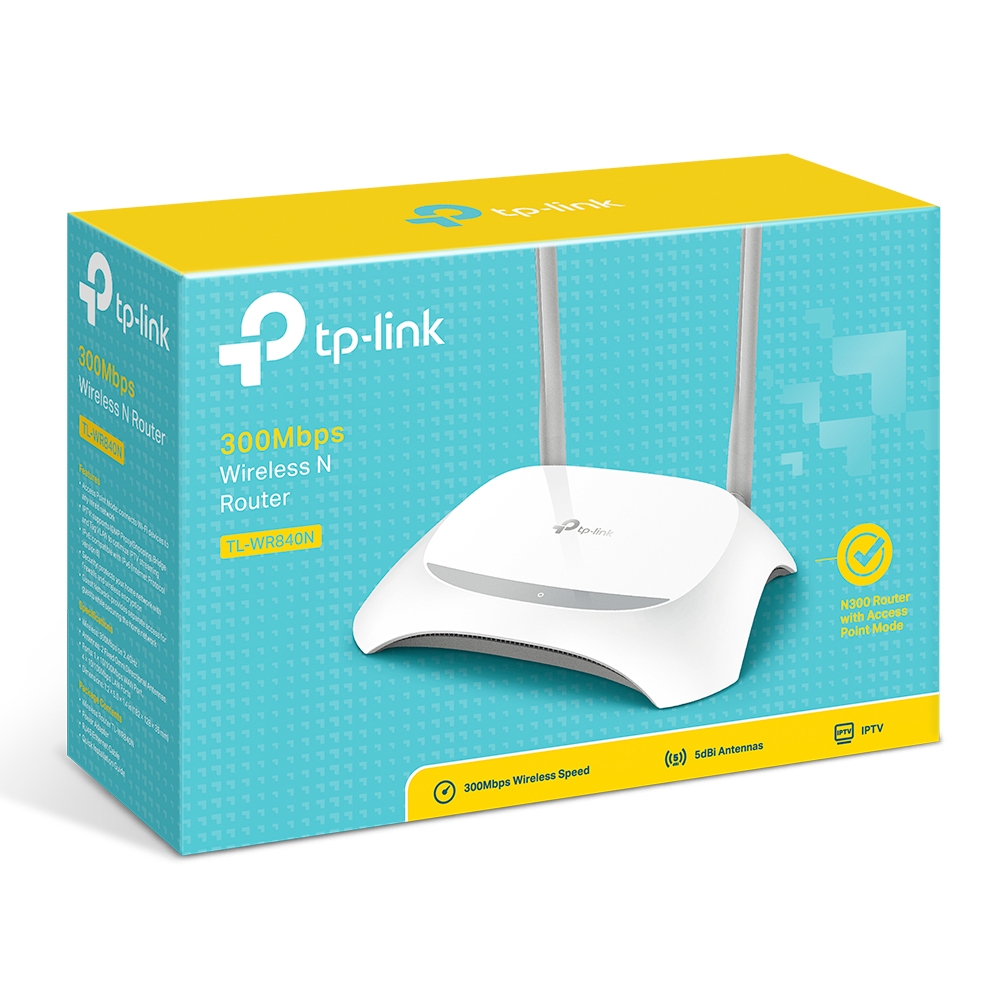

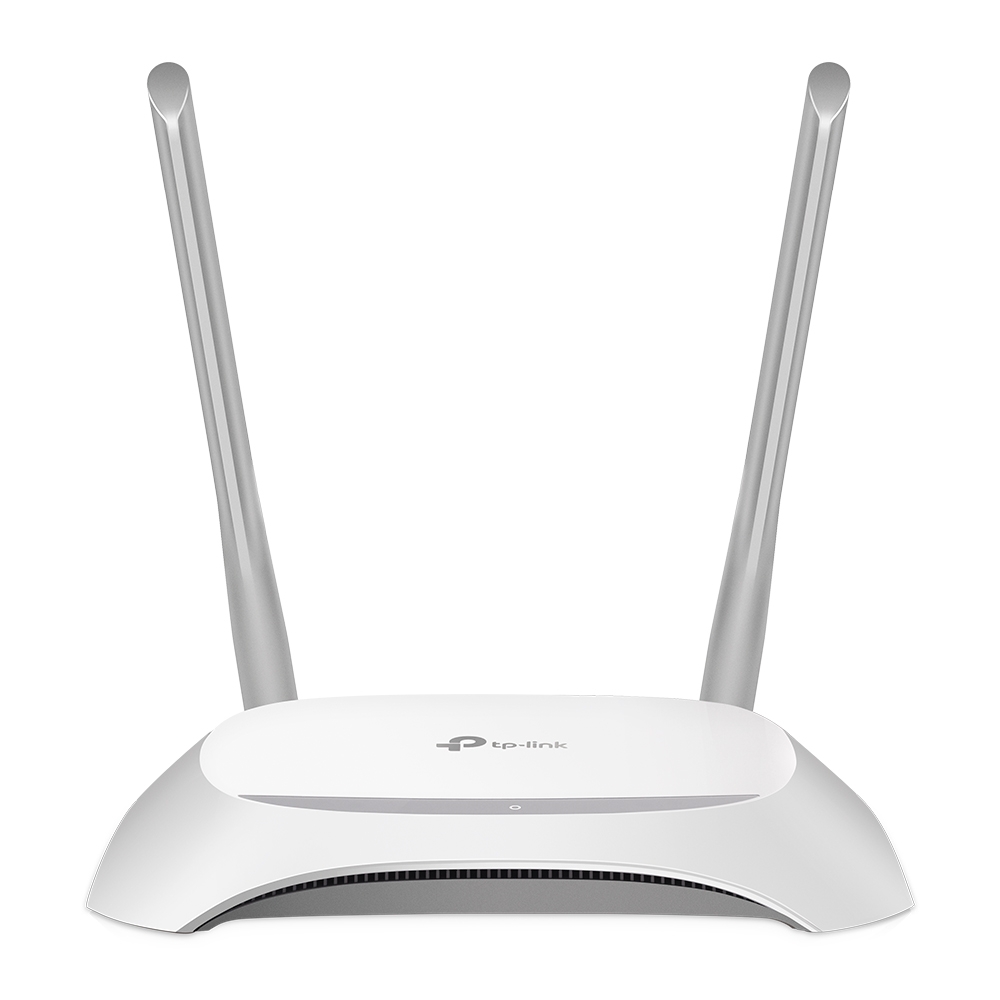

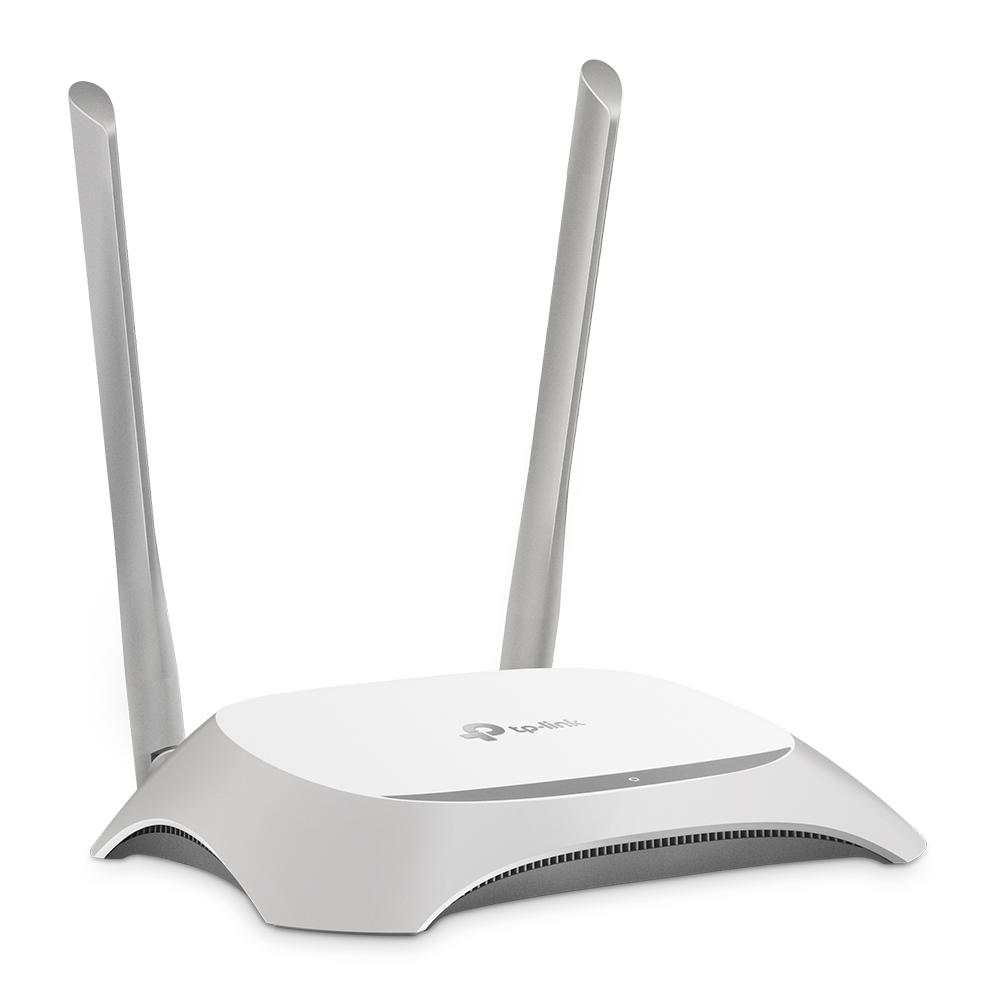

TP-LINK TL-WR840N 300mbps N300 2.4GHZ Access Point Router 2x 5dbi sabit anten

KABLOSUZ

Standards and Protocols Wi-Fi 4
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds N300
2.4 GHz: 300 Mbps (802.11n)
WiFi Range 2 Bedroom Houses2× Fixed Antennas
WiFi Kapasitesi Legacy
Working Modes Router Mode
Access Point Mode
Range Extender Mode
Advanced Features EasyMesh-Compatible

GÜVENLİK

Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network 1× 2.4 GHz Guest Network
WiFi Encryption WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)

HARDWARE

Processor Single-Core CPU

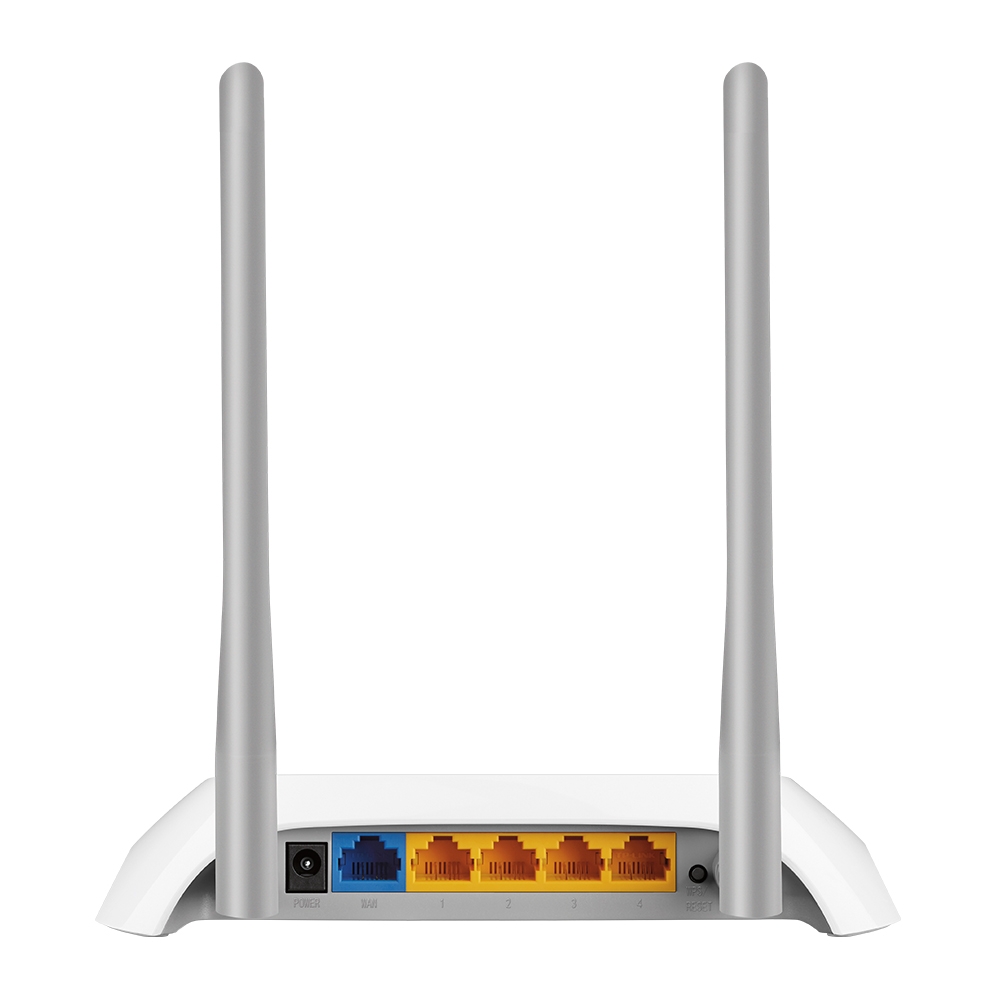

Ethernet Ports 1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports
Butonlar Reset Button
Power 9 V ? 0.6 A

SOFTWARE

Protocols IPv4
IPv6
Parental Controls URL Filtering
Time Controls
WAN Types Dynamic IP
Static IP
PPPoE
Quality of Service QoS by Device
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
DHCP Address Reservation
DHCP Client List
Server
DDNS NO-IP
Comex
DynDNS
Management Features Tether App
Webpage
Check Web Emulator>

OTHER

Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
App management
Manage and configure device through app
• Port: 22 Protocol: TCP
• Port: 20001 Protocol: TCP
• Port: 20002 Protocol: UDP

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power CE:
<20dBm(2.4GHz)
FCC:
<30dBm
WiFi Reception Sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER

PHYSICAL

Dimensions (W×D×H) 7.2 × 5.0 × 1.4 in
(182 × 128 × 35 mm)
Package Content Wi-Fi Router TL-WR840N
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
