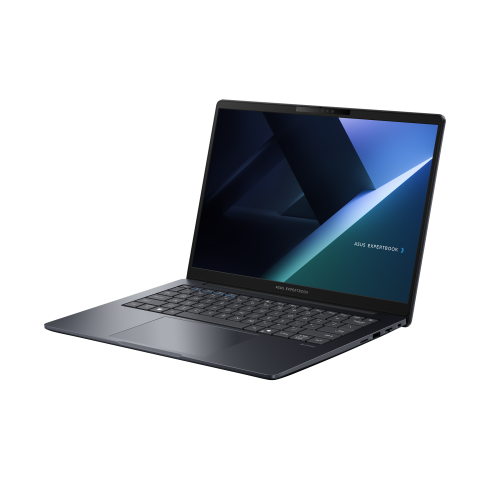

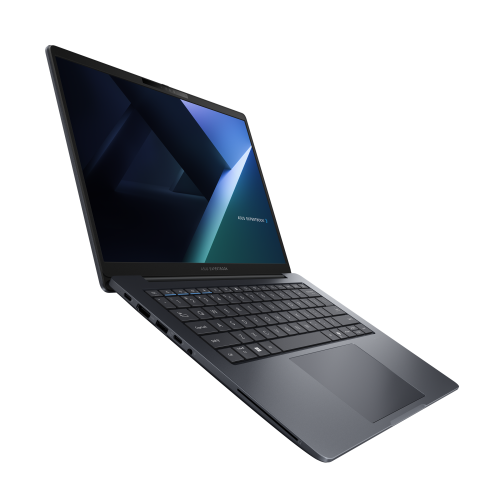

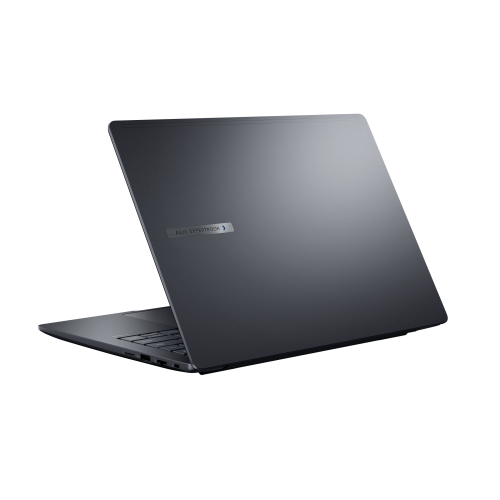

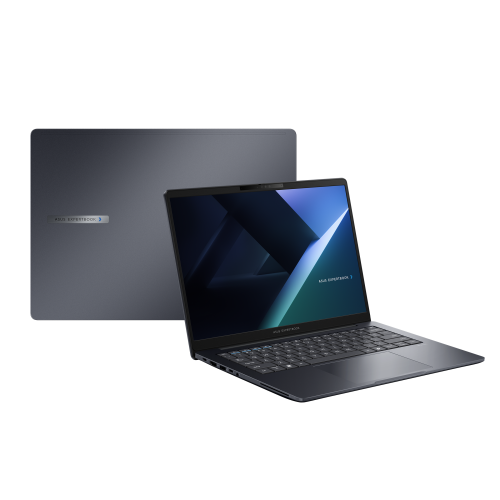

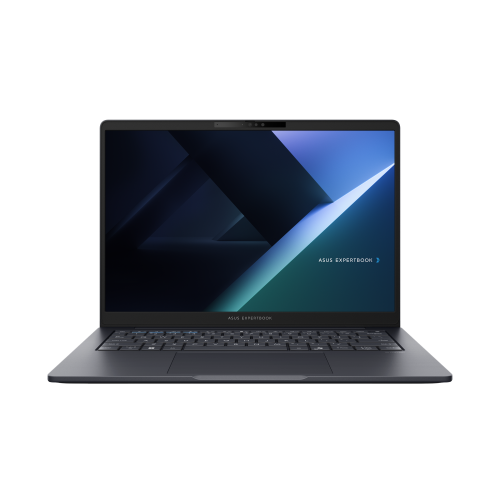

ASUS 14" B5405CCA-U716512B0D ULTRA 7-255H 16GB 512GB M2 NVME- O/B UHD FDOS

Asus B5405CCA-U716512B0D, Expertbook B5, Ultra 7 255H, 14" Wuxga Full Hd, 16GB Ddr5 Ram, 512GB Ssd, Paylaşımlı Ekran Kartı, Free Dos, Kurumsal Notebook


Part No 90NX08I1-M00UY0
Sales Model Name B5405CCA-U716512B0D
EAN Code 4711636175944
UPC Code 199291175945
WEEE 1.028
BASE UNIT VSNX08I1-BU1124

Operating System Non-preinstalled OS
LCD cover-material Aluminum
LCD cover-color Gentle Grey
Top case-material Aluminum
Top case-color Gentle Grey
Bottom case-material Aluminum
Bottom case-color Gentle Grey
Military grade US MIL-STD 810H military-grade standard
Panel Size 14.0-inch
Backlit LED Backlit
Brightness 300nits
Resolution WUXGA (1920 x 1200) 16:10
Glare Anti-glare display
Color gamut NTSC: 45%
View angle(H/V) 170/170
Response time(Typ/Max) (ms) 25/30
Refresh rate 60Hz
Contrast  (Typ) 1000:1
Touch Panel Non-touch screen
Screen-to-body ratio 84 %
IPS-level Wide view
Processor Intel® Core™ Ultra 7 Processor 255H 2.0 GHz (24MB Cache, up to 5.1 GHz, 16 cores, 16 Threads); Intel® AI Boost NPU up to 13 TOPS
Neural processor Intel® AI Boost NPU
Chipset N/A
Discrete/Share Share
Integrated GPU Intel® Arc™ Graphics(available for Intel® Core™ Ultra H 5/7/9 with dual channel memory)
VRAM N/A
Expansion Slot(includes used) 2x DDR5 SO-DIMM slots
DIMM Memory 16GB DDR5 SO-DIMM
Total System Memory DDR5 16GB
Storage 512GB M.2 2280 NVMe™ PCIe® 4.0 SSD
SSD Housing for storage expansion
Front-facing camera 1080p FHD camera
With privacy shutter
Wireless Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.4 Wireless Card
NumberPad N/A
FingerPrint FingerPrint
Keyboard type Backlit Chiclet Keyboard
I/O ports 2x USB 3.2 Gen 1 Type-A
2x Thunderbolt™ 4, compliant with USB4, supports display / power delivery
1x HDMI 2.1 TMDS
1x 3.5mm Combo Audio Jack
1x RJ45 Gigabit Ethernet
Micro SD card reader
Audio Audio by Dirac
Battery 50WHrs, 3S1P, 3-cell Li-ion
AC Adapter TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100~240V AC 50/60Hz universal
Required charging power  Min: 55W
Max: 65W
*The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher.
Dimension (WxHxD) 31.51 x 22.68 x 1.75 ~ 1.79 cm (12.41" x 8.93" x 0.69" ~ 0.70")
Weight (with Battery) 1.41 kg (3.11 lbs)
Weight (w/o Battery) 1.22 kg (2.69 lbs)
Security Fingerprint sensor integrated with Power Key
Kensington Nano Security Slot™(6x 2.5mm)
BIOS Booting User Password Protection
BIOS Integrity Measurement Support
BIOS Self Recovery
BIOS setup user password
CSME BIOS Redundancy Assistance
Enhanced Password Strength
HDD User Password Protection and Security
Intel CSME Firmware Resilience
Intel® BIOS Guard
Intel® Boot Guard
Microsoft Security Level 2
Support Absolute Persistence 2.0 (Computrace)
Trusted Platform Module (TPM) 2.0
N/A
MyASUS feature System diagnosis
Battery health charging
Fan Profile
Splendid
Tru2Life
Function key lock
WiFi SmartConnect
AppDeals
Link to MyASUS
Built-in Apps MyASUS
AI ExpertMeet (AI features need devices with 12GB RAM or more)
Disclaimer for Built-in Apps Built-in Apps vary from OS SKU.

*MyASUS/McAfee don't support in Pure OS/without OS/G sku/Win SE/Windows on ARM/Linux OS (ex. Endless, Kylin, Ubuntu)
Reparability Index (for Belgium) 9.5
Reparability Index (for France) 9.9
Ecolabels & Compliances EPEAT Gold with Climate+
Energy star 8.0
FSC Recycled
REACH
RoHS
TCO Certified
Base Warranty 2Y Pick up/ return
Recommended Warranty Package Part number//Extension and/or upgrade service from base warranty ACX11-004802NX//1Y Extension
ACX11-00482DNX//3Y Extension
ACX11-004840NX//1Y Extension; 3Y OnSite Service(Next Business Day)*upgrade
*If you would like to know the details, please contact your sales teams.
Battery warranty Commercial NB B series Battery warranty follow system warranty, 4Y-5Y by WEP option.
Sustainable Material_Top cover(A part) 30% PCR recycled plastic(cover or inner frame)
30% PIR recycled aluminum
Sustainable Material_Keyboard frame (C part) 30% PCR recycled plastic(cover or inner frame)
30% PIR recycled aluminum
Sustainable Material_Bottom cover (D part) 30% PCR recycled plastic(cover or inner frame)
30% PIR recycled aluminum
Sustainable Material_Battery 30% PCR recycled plastic
Sustainable Material_Keyboard 50% PCR recycled plastic cap
50% PIR recycled aluminum bracket
Sustainable Material_Speaker 45% PCR + 5% OBP PCR recycled plastic enclosure

Bellek 16 GB
Depolama Alanı SSD 512 GB
Ekran Boyutu 14"
Ekran Çözünürlüğü 1920x1200
Ekran Kartı Bellek Paylaşımlı
Ekran Kartı GPU INTEL Dahili GPU
Ekran Kartı Tipi Paylaşımlı
İşlemci INTEL
İşlemci Tipi INTEL CORE ULTRA 7
İşletim Sistemi Free DOS
