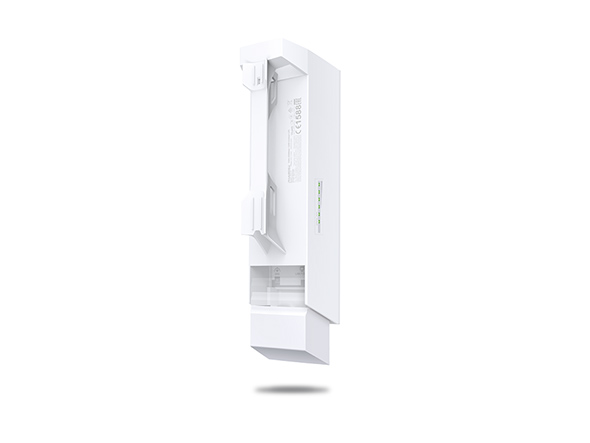

TP-LINK CPE510 13dbi 300mbps 5ghz 15km Harici Access Point

CPE510
5GHz 300Mbps 13dBi Dış Mekan CPE

• Yerleşik 13dBi 2x2 çift polarizasyonlu yönlü MIMO anteni
• 0 ile 23dBm/200mw arasında ayarlanabilir iletim gücü
• 15km üzerinde kapsama alanlı kablosuz ağ iletimi için sistem düzeyinde optimizasyon
• Ürün performansını, kapasitesini ve gecikme süresi performansını yükselten, PTMP uygulamaları için ideal TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access; Zaman Bölmeli Çoklu Erişim) teknolojisi
• Merkezi Yönetim Sistemi – Pharos Control
• AP / Client / AP Router / AP Client Router (WISP) çalışma modları
• 60 metreye (200 feet) kadar Ethernet Üzerinden Güç uygulamasını destekleyen ve cihazın uzaktan sıfırlanmasına olanak veren Pasif PoE Adaptörü

Kolay kurulum için buraya tıklayınız!
www.kolaykurulum.net


DONANIM ÖZELLİKLERİ

İşlemci Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc
Bellek 64MB DDR2 RAM, 8MB Flash

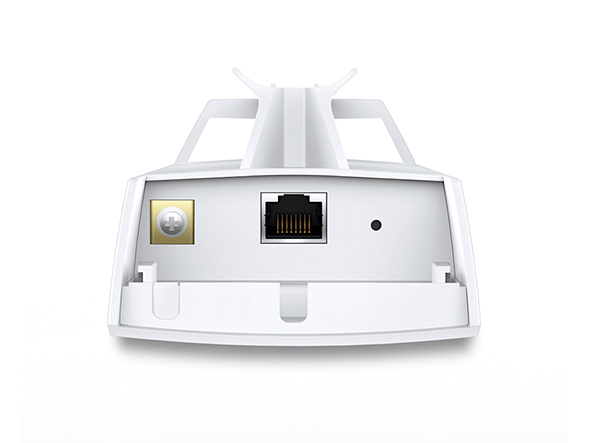

Arabirim 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 Grounding Terminal
1 Reset Button
Güç Kaynağı Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Güç Tüketimi 10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Boyutlar ( W X D X H ) 224 x 79 x 60 mm
Anten Built-in 13dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 45° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet
Koruma 15KV ESD Protection
6000V Lightning Protection
Muhafaza Outdoor ASA stabilized plastic material
IPX5 waterproof Certification

KABLOSUZ ÖZELLİKLERİ

Kablosuz Standartlar IEEE 802.11a/n (with Pharos MAXtream disabled)
Tescilli Protokol TDMA Mode (with Pharos MAXtream enabled)
Kablosuz Hızı Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frekans 5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
İletim Gücü 23dBm/200mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

YAZILIM ÖZELLİKLERİ

Kablosuz Konfigürasyonlar Pharos MAXtream TDMA Technology
802.11a/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Yönetim Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
Sistem Araçları Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Sistem Düzeyindeki Optimizasyonlar Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog

POE ADAPTÖR ÖZELLİKLERİ

Boyutlar (H X W X D) 110*57*33.5mm
Arayüzler 1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)
Buton Remote Reset Button
Güç Durum LEDleri Green

Giriş 100-240VAC, 50/60Hz
Çıkış 24VDC, 1A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Verimlilik >80%
Sertifikalar CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

DİĞERLERİ

Sertifika CE, FCC, RoHS, IPX5
Paket İçeriği Outdoor Wireless CPE
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
Sistem Gereksinimleri Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Ortam Operating Temperature: -30°C~70°C (-22?~158?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

Ek sürüm bilgisi için lütfen destek sayfasına gidin.
