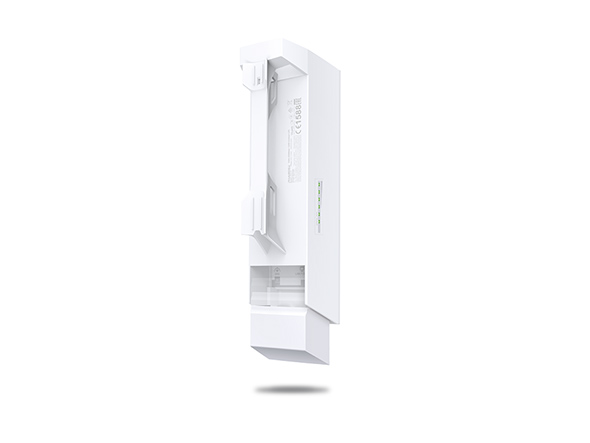

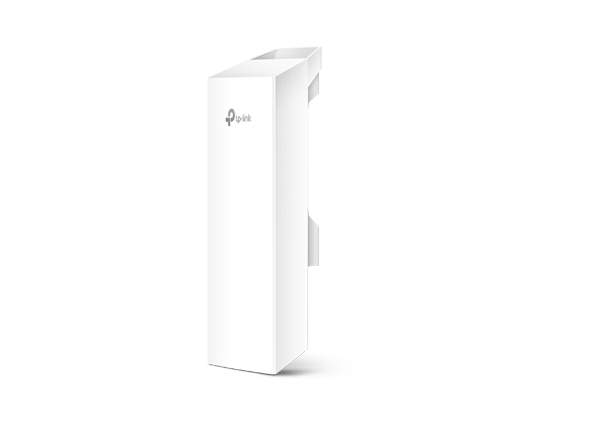

TP-LINK CPE210 9dbi 300mbps 2.4ghz 10+km Harici Access Point

2.4GHz 300Mbps 9dBi Outdoor CPE

• Dahili 9dBi 2x2 çift kutuplu yönlü MIMO anteni
• 0 ila 25dBm / 500mw arasında ayarlanabilir iletim gücü
• 5 km'den uzun  menzilli kablosuz iletim için sistem düzeyinde optimizasyonlar
• TP-LINK Pharos MAXtream TDMA (Zaman Bölmeli-Çoklu Erişim) teknolojisi, PTMP uygulamaları için ideal olan üretim, kapasite ve gecikme performansında ürün performansını artırır
• Merkezi Yönetim Sistemi - Pharos Kontrolü
• AP / Client / AP Router / AP Client Router (WISP) operasyon modları
• Pasif PoE Adaptörü, 60 metreye (200 feet) kadar Ethernet dağıtımını destekler ve cihazın uzaktan sıfırlanmasını sağlar
 Pharos Control Hakkında daha fazla >


DONANIM ÖZELLİKLERİ

İşlemci Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Bellek 64MB DDR2 RAM, 8MB Flash
Arabirim 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 Grounding Terminal
1 Reset Button
Güç Kaynağı Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Güç Tüketimi 5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Boyutlar ( W X D X H ) 224 x 79 x 60 mm
Anten Built-in 9dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 65° (H-Plane) / 40° (E-Plane)
Note: For more details, please refer to datasheet
Koruma 15KV ESD Protection
6KV Lightning Protection
Muhafaza Outdoor ASA stabilized plastic material
IPX5 waterproof Certification

KABLOSUZ ÖZELLİKLERİ

Kablosuz Standartlar IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Tescilli Protokol TDMA Mode (with Pharos MAXtream enabled)
Kablosuz Hızı Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frekans 2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
İletim Gücü 25dBm/316mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

YAZILIM ÖZELLİKLERİ

Kablosuz Konfigürasyonlar Pharos MAXtream TDMA Technology
802.11b/g/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Yönetim Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
Sistem Araçları Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Sistem Düzeyindeki Optimizasyonlar Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog

POE ADAPTÖR ÖZELLİKLERİ

Boyutlar (H X W X D) 85.8×43.9×29.7 mm
Arayüzler 1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)
Buton Remote Reset Button
Güç Durum LEDleri Green
Giriş 100-240VAC, 50/60Hz
Çıkış • V2.0: 24VDC, 0.6A Max
• V3.0: 24VDC, 0.5A Max
• V3.20: 24VDC, 0.25A Max

+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Verimlilik >80%
Sertifikalar CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

DİĞERLERİ

Sertifika CE, FCC, RoHS, IPX5
Paket İçeriği Outdoor Wireless CPE
24V 0.6A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
Sistem Gereksinimleri Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Ortam Operating Temperature: -40?~70? (-40?~158?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

Ek sürüm bilgisi için lütfen destek sayfasına gidin.
